Rear View Camera System
RVS-770613

The RVS-770613 Rear View Camera System is complete with color 7" TFL LCD monitor with mirror image capability, a 3 channel multiplexer (can connect a dvd player or other cameras) with automatic system switch, 130° ccd camera with 50 foot infra-red night vision and all the wires, connectors and mounts you will need.

The system is weather proof, strong and reliable, shock resistant and comes with a full year warranty.

Buy Now for ONLY $200
reg. price $250 (save $50 today)

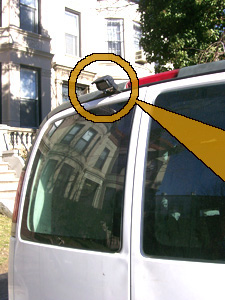

Typically the camera is placed on the top (center) of vehicle
and angled properly so you get the entire picture.

The RVS-770613 Rear Veiw Camera Systems allow the driver to see behind the vehicle in the area which mirrors alone cannot reach, also called
the Blind Zone.

We recommend professional installation from an Auto Accessories Shop because they can guarantee that the system is installed correctly.

The RVS-770613 Rear View Camera System can HELP SAVE LIVES and prevent unnecessary accidents while backing up.

We recommend this system for use on any moving vehicle, but especially:
Vans, Trucks, School Buses, Fleet Trucks, Trailers, 18 Wheelers, 24' and 27' Trucks.

Camera

1/4 sharp color CCD, 250k pixels, 2.1 mm wide lens with 130° angle, 420 TV lines (which means best quality image, with no blind spots)
18 automatic Infra-red night vision aluminates = 50 feet of vision in the darkest night. With built in foam around lens (so you are garneted not to have any glare from the IR's).
Extremely strong weather proof casing, with 10g impact rating, as well as a screw base and water proof sleeve connection.

All systems work great
at night. The camera has a
built in INFRARED so you can see in total dark.

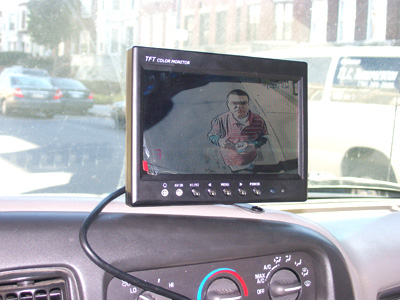

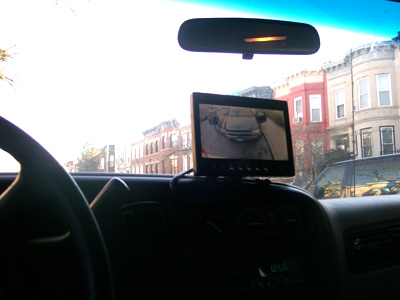

Monitor

7" color TFT LCD 16:9 wide screen with selectable option from monitor for 4:3
(super sharp image 1440x234)
Built-in speakers and earphone jack
Remote control (all functions can be controlled from the monitor)

Multiplexer & System

3 channels allowing you to connect additional cameras or DVD player (can be selected from monitor or remote)
Mirror imaging so you can see proper side
Automatic switch (option to automatically have the system turn on when in reverse)
Allows 12-24 dc power
All cables and connectors are weatherproof

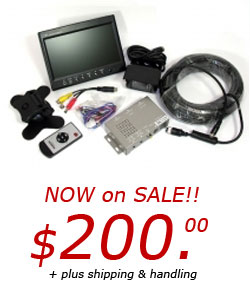

PACKAGE IS COMPLETE WITH:
- 1 Color CCD infra-red weather proof camera
- 1 7" TFT LCD color monitor with universal mount/stand and wire
- 1 3 channel multiplexer control unit
- 1 66’ extension cable for camera
- 1 Remote control
- 1 Power connection wire
- 1 Double RCA + power converter, (to connect external, audio video and power)
- 1 Screw kit for installation

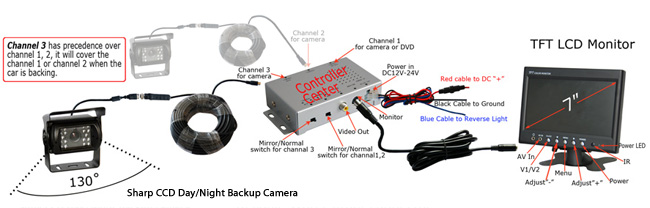

Installation & Specs
TFT LCD Monitor		Camera 1/4 Sharp Color CCD
Screen Size	7"	Picture Elements	250,000 pixels
Dot Resolution	1440(H)x234(V)	Gamma Correction	r=0.45 to 1.0
Display Format	16:9	Image Sensor	420TV lines PAL:500(H)582(V), NTSC:510(H)492(V)
Display Brightness	300	Lens	2.1mm
Viewing Angle	90° Min	View Angle	130°
Video Input	2 channel	Sync System	Internal Synchronization
Video Source	1Vp-p, 75Ω	Infra-red distance	50 Feet (18 Infrared LED)
Power Supply	DC 12V (DC 24) (+/-10%)	Usable Illumination	0 Lux (LED On)
Power Consumption	5W	Power Source	DC 12V (+/- 10%)
Operating Temperature	-10°C ~ +65° C	S/N Ratio	More than 48dB
Video System	Auto NTSC/PAL	Electronic Iris	1/50, 160-1/100,000sec
Overall Dimensions	200 (L) x 115 (H) x 29 (T)	Video Output	1Vp.p 75ohm
Weight	400G	IR Switch Control	CDS Automatic Control
Impact Rating	5G	Impact Rating	10G
Active Area	154.08(H) x 86.58 (V)	Operating Temperature	-10°C - 50°C / RH 95% Max
Sync System	Internal	Storage Temperature	-25°C - 60°C / RH 95% Max

TO ORDER BY PHONE: 1-862-600-7455 Contact Us NOW!

Warranty Terms and Conditions

RVS warrants this product against defects in materials for a period of one year after the date of purchase. Read about it in our Rear View Safety Limited Warranty and Advance Replacement Warranty.
